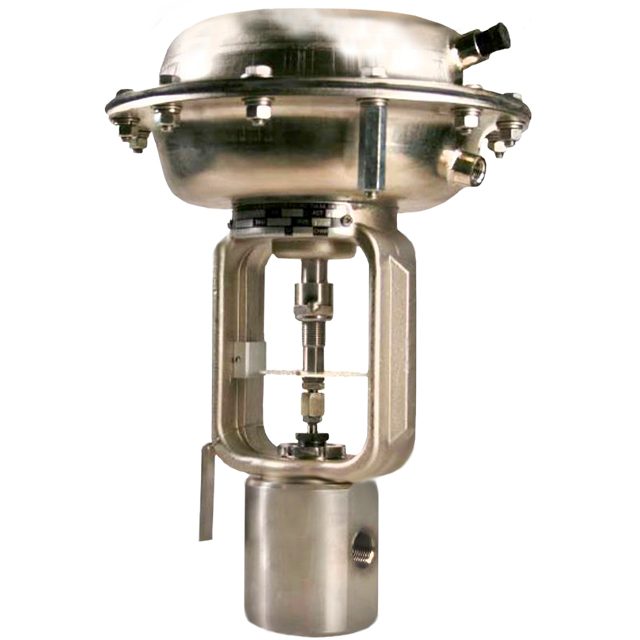

Badger Meter HP15 15000 psi High Pressure Control Valve

High pressure valve

Product Information

The Badger Meter HP15 15000 psi High Pressure Control Valve is used in industrial applications research, and process pilot plants on liquids and gases. One of the main uses is in high-pressure chemical injection used in offshore oil and gas production rigs.

• Wide range of interchangeable trims
• Choice of linear or quick opening trims
• Extensive in-house knowledge always available
• ANSI Class III shut-off for trim sizes P-1 thru P-6
• ANSI Class IV shut-off for trim sizes K thru O
• Solid Stellite innervalve

Reco Research Control Range

Sizes Available: ¼”, ½” (High Pressure Autoclave Fitting)

Materials of construction: 17-4PH / Stellite 6B

Maximum Pressure: 1020 Bar (15000psi)

CV Range: 0.0000018 to 0.002

Seal Options: PTFE, PTFE/Kalrez, Grafoil, REK

Temperature: -70°C to +530°C

Other Details:

ANSI Class III (3) shutoff for trim sizes P-1 thru P-9

ANSI Class IV (4) shutoff for trim sizes K through O
