Cryogenic Control Valves
Badger Meter Cryogenic Control Valves are ideal for precise metering of liquefied gases ensuring accurate temperature control.

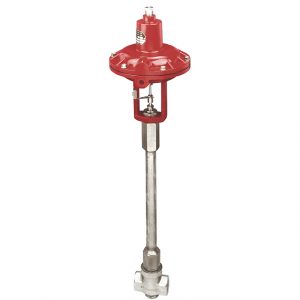

Badger has two specific valves, the RC260 with its 14 extended bonnet enables the valve to be maintained at cryogenic temperature and the gland packing at room temperature, and the CBX (cold box) valve which allows for maintenance without need to disconnect valve from plant. Clever design and thinking “outside the box” from Badger

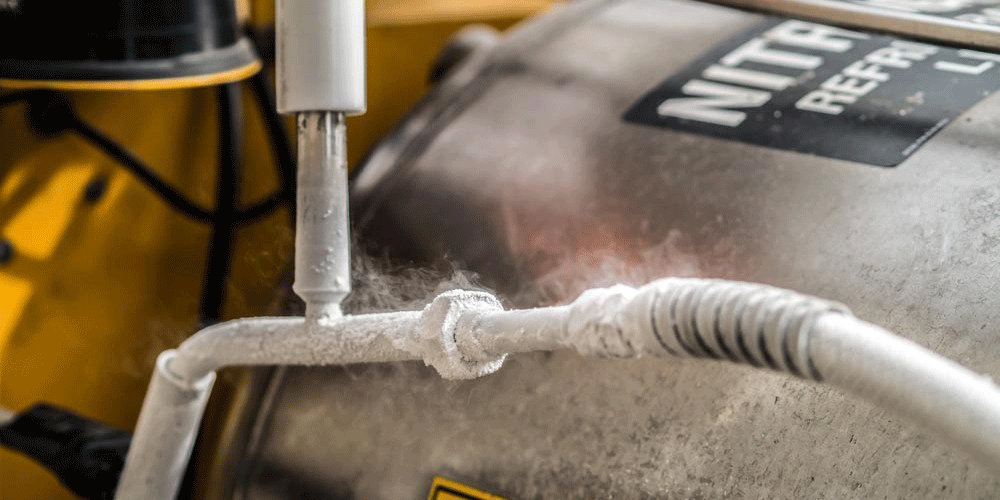

One of the most common applications using RC260 and CBX valves in cryogenics is for liquid nitrogen at -196 Deg C for freeze drying, spray drying and cooling tunnels and can often be found in the food industry.
Typical applications
for our Cryogenic valves include (naturally not limited to) pilot plants, dosing, injection, steam (process and services), chemical dosing, pressure let-down, venting, cryogenics, hydrogen control, oxygen control, nitrogen control, carbon dioxide control, food production, liquefied gases, pharmaceuticals, biotechnology and supercritical fluids.
Quick link to Badger valves recommended for cryogenic applications.
