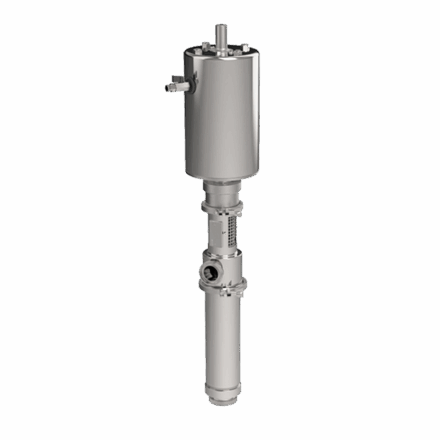

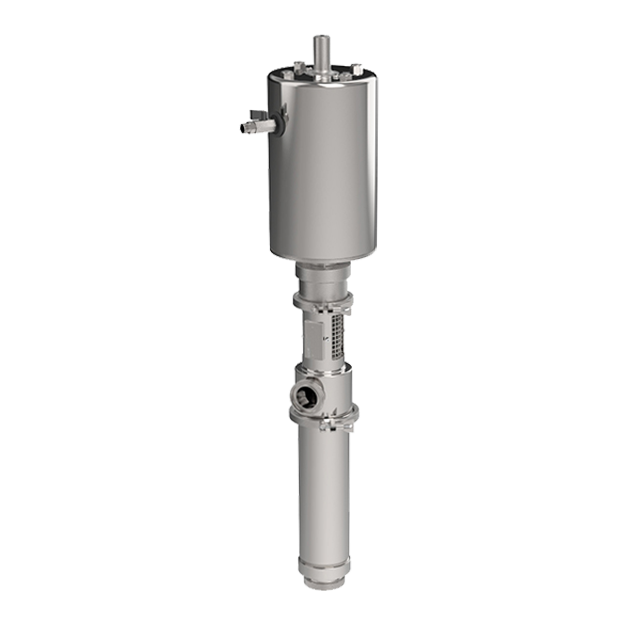

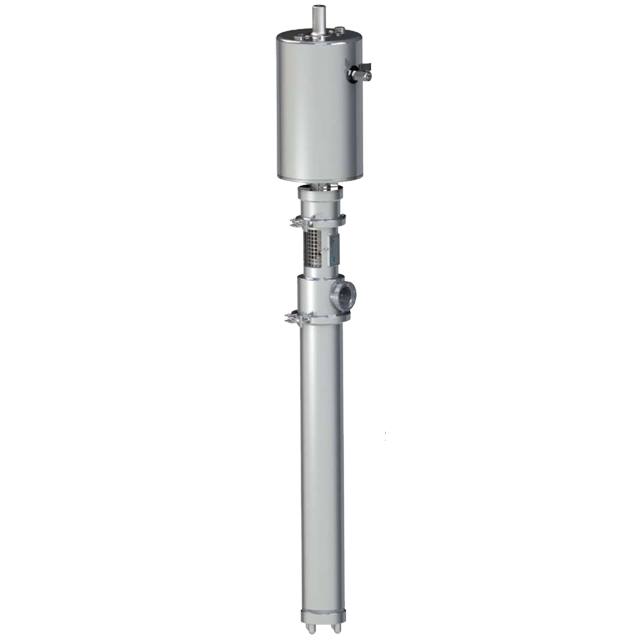

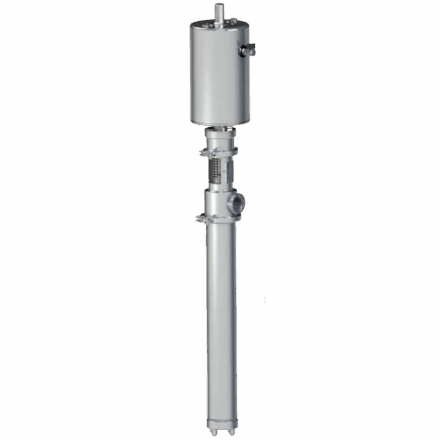

CSF PA30A-45 Hygienic Air Operated Piston Pump

Hygienic Piston Pumps for Very High Viscosity Products

Product Information

CSF PA30A-45 Hygienic Air Operated Piston Pump in 316 Stainless Steel available from Pump Engineering – UK Distributor.

CSF PA30A-45 – key features

  • CSF Piston Pump UK PA30A-45 Air Operated Hygienic Series, capable of flows up to lit/min and pressure ratio of 5:1
  • Quick strip hygienic clamp design
  • Suitable for extremely high viscosity fluid
  • ATEX 2G and 3G Version available
  • Includes non flowing media
  • Short, long, floor mounts and in drum versions are available (in addition to bag in drum and follower plate options)
  • Latching valve in air motor which completely eliminates nuisance stalling
  • If the piston pump is dead headed, it will stop then also restart when pressure drops/valve opens (no controls are necessary)
  • In-house modifications as a result with our vast experience and knowledge
  • CSF Piston Pumps have been part of the Pump Engineering Range for over 30 years
  • Air Operated Piston Pump experts with a solution for almost every application

CSF Inox PA30A-45 – applications

  • High viscosity drum/barrel emptying – even the thickest of products are pumpable!
  • Transfer in dairy, food, pharmaceutical, soft drinks and also brewing industries
  • Pharmaceuticals and toiletries
  • Full range of ATEX versions available throughout most of the range

CSF PA30A-45 PA Hygienic Series

Materials of construction: 316 Stainless Steel as standard, seals available in an all PTFE version for solvents

Pressure Ratio: 5:1

Flow rate: Maximum  2 litres/min  (120 litres/hour) at 1000cP

Flameproof: Standard safe area, with cost effective option for ATEX 2G and 3G flameproof certification on this model

Seal Options: Huge range to suit every duties, view CSF Piston Pump Seal options

Models: Barrel/vessel immersible, short floor mount versions, follow plate and hoist mounted.

End Connections: Din 11851, RJT, Triclamp, SMS, IDF/ISS, Flange and more

Other Features:  Huge Dry Priming Capability, will work with bag in drum and 1 million cP is possible on some models
