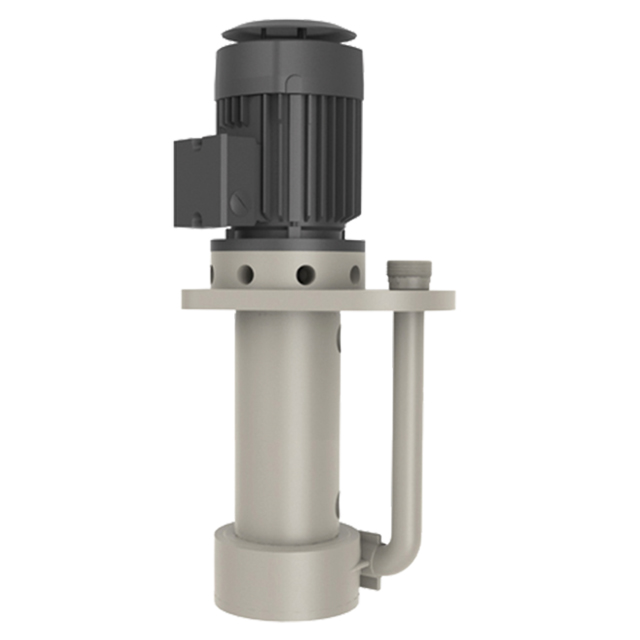

ASV Stubbe ETL Plastic Vertical Cantilever Sump Pumps

Stuebbe dry run safe sump pumps in PP and PVDF

Product Information

ASV Stubbe ETL Plastic Vertical Cantilever Sump Pumps are available from Pump Engineering who have been working with Germany’s most respected plastic pump manufacturer for over 30 years and remains their key UK distributor.

Key Features

  • Dry Running Chemical Vertical Cantilever Sump pump
  • No Mechanical Seal with special V ring to stop any vapour entering the atmosphere
  • Robust construction ensures durability in addition to low vibration and operating noise
  • Wide range of applications due to an extensive range of designs and material combinations
  • Also available in Polypropylene and also PVDF
  • easy to fit extension tubes and strainers available.
  • Bespoke mounting plates available as well as shorter deliver standard options

Typical Applications

  • Sump / Tank recirculating and emptying in chemical plants
  • Acids and also alkali, aggressive and corrosive liquids
  • Water treatment, industrial effluent
  • Plating industry chemicals

ASV Stubbe / Stuebbe ETL Series

Pump Type:  Plastic Vertical Cantilever / Sump Pump

Seal Options:  No Mechanical Seal – Safe to Run Dry!

Length: up to 500 or 750mm submersion depth

Extension Tube: up to 1800 mm

Materials of construction: Polypropylene or  PVDF (Kynar)

Maximum Pressure: up to 55m (5.5 Bar)

Flow rate: Up to 220m3/h (up to 220000 litres/hour)

Maximum Temperature: 110°C

Sizes: 20mm to 80mm (discharge size)

Motors:  IEC Standard fitted up to 45 kW
